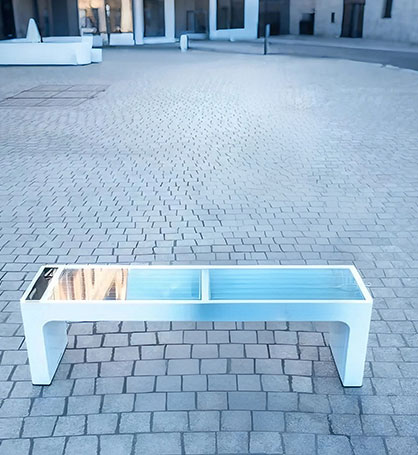

Smart Park Bench 2
Dimensions: 1600mm (L) × 500mm (W) × 450mm (Thickness)
Materials: 304 Stainless Steel / 201 Stainless Steel / Galvanized Steel Sheet
Price: // ***
Product Description
This smart bench represents an upgraded urban public facility solution that integrates "Ecological Low-Carbon + Technology Empowerment + Human-Centric Care" into a unified system. Through integrated functionality and lightweight design, it transforms traditional park benches into intelligent hubs that combine practicality with contextual value, making it suitable for diverse settings such as modern urban parks, commercial districts, and cultural tourism scenic areas.
Core Design Philosophy
- Human-Centric Functional Integration: Designed around users' core needs in outdoor environments (resting, charging, lighting, information access), it consolidates scattered public service functions into a single seating unit, reducing facility fragmentation while improving efficiency and user experience.
- Low-Carbon Sustainable Energy Logic: Implements a closed-loop "solar self-sufficiency" energy system. Solar panels store energy during the day to power lighting, charging, and other functions at night, eliminating the need for external grid connections and supporting urban carbon neutrality goals.
- Context-Integrated Aesthetic Expression: The exterior design follows a "minimalist restraint" principle, using smooth geometric lines and low-saturation colors (white, light gray, wood tone) to blend into both natural and urban environments. It functions as a practical bench during the day and transforms into a landscape feature with ambient lighting at night.
Core Functional Modules
|
Module |
Technical Implementation |
Contextual Value |
|
Energy Self-Sufficiency System |
Seat-integrated high-transmittance tempered glass photovoltaic panels (conversion efficiency ≥20%), built-in lithium battery pack (endurance ≥72 hours). |
Eliminates grid dependency, suitable for outdoor settings without power supply, promotes green and low-carbon operation. |
|
Smart Charging Function |
Supports wireless charging (Qi protocol) + hidden USB/Type-C ports (low-voltage 5V output). |
Meets emergency charging needs for phones, earphones, etc., addressing outdoor "battery anxiety." |
|
Night Lighting System |
Bottom ambient light + seat contour lighting (RGB dimmable), with brightness sensor auto on/off. |
Enhances nighttime walking safety, creates a warm park nightscape, combining illumination and landscape functions. |
|
Information Interaction Terminal |

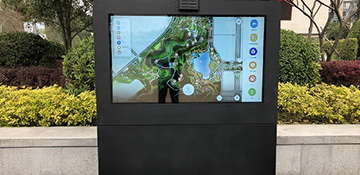

Select models feature HD touchscreens integrated with environmental monitoring (temperature, humidity, PM2.5), park guides, emergency alerts, public service ads. |
Creates an "outdoor information hub," improving accessibility and efficiency of public services. |
|
Network Service Capability |
Built-in WiFi hotspot (coverage radius ≥10 meters), supports free visitor access. |
Meets outdoor work and social sharing network needs, enhancing user engagement with the environment. |
Structure and Material Design
- Main Frame: Made of 6061-T6 aluminum alloy / 304 stainless steel with one-piece forming, finished with fluorocarbon coating for corrosion resistance, rust prevention, and impact resistance. Suitable for complex outdoor climates with a service life ≥10 years.
- Seating Surface Options:

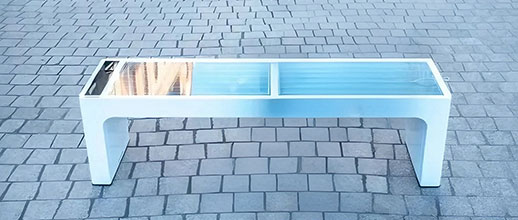

- Photovoltaic Version: High-transmittance tempered glass + photovoltaic film layer, balancing power generation and load-bearing (load capacity ≥200kg).
- Comfort Version: Imported Merbau wood / eco-friendly composite wood, moisture and crack-resistant, warm to the touch, with ergonomic curvature design.
- Protection Features: Whole unit rated IP65 waterproof and dustproof; charging ports and battery compartments are sealed; rounded edges prevent collision risks, suitable for users of all ages.
- Modular Design: Functional modules (solar panels, batteries, display screens) are independently packaged with reserved access ports, supporting future upgrades and component replacements to reduce maintenance costs.
Scenario Adaptability and Design Highlights
Multi-Scenario Adaptability
Urban Parks: Simple white version + wooden seat surface, integrates into natural environments, meets visitor resting and charging needs.
Commercial Districts: Metallic gray photovoltaic version + ambient lighting, creates nighttime social media hotspots, enhancing district vibrancy.

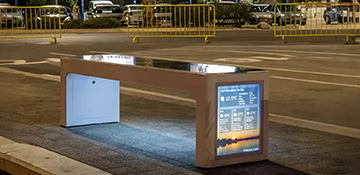

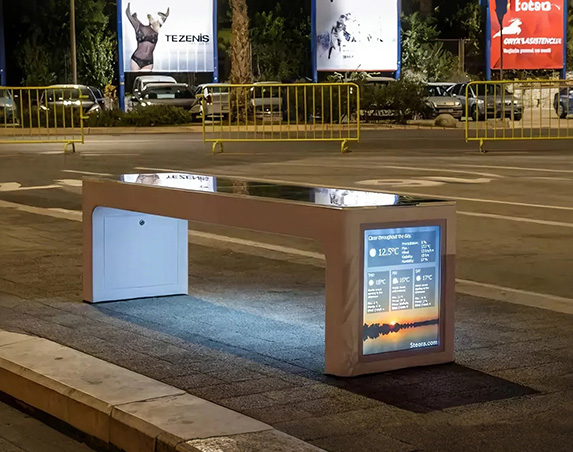

Cultural Tourism Scenic Areas: Display screen version, can show maps, attraction information, improving visitor experience.
Dual-Day/Night Experience

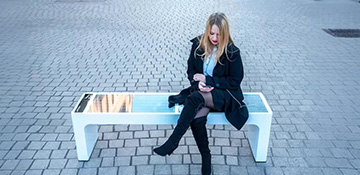

Daytime: Functions as a practical bench, with solar panels discreetly integrated into the seat surface without disrupting aesthetic appeal.

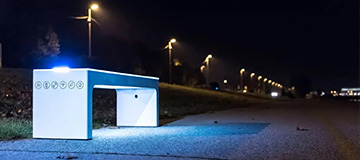

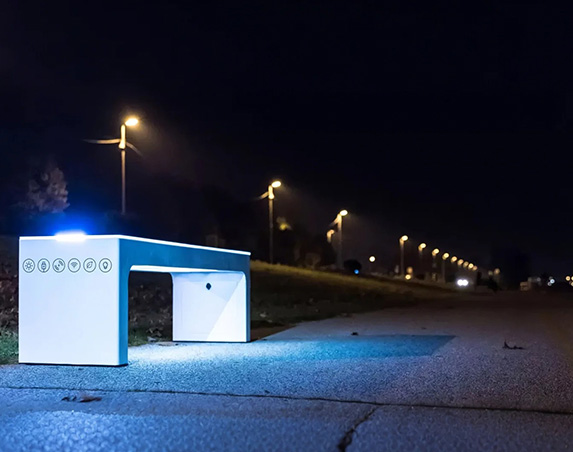

Nighttime: Ambient lights automatically turn on, transforming the bench into a glowing "urban furniture" that enhances spatial visibility.
User-Friendly Details
- Charging ports are hidden on the sides to prevent water ingress and accidental contact.
- Seat height (45cm) and depth (50cm) comply with ergonomic standards for prolonged sitting comfort.
- Select models equipped with USB-C ports for compatibility with the latest digital devices.
Practical Value
- Public Service Upgrade: Transforms from "single-function resting" to "multi-service provision," enhancing the intelligence level of urban public facilities.
- Low-Carbon City Development: Solar self-sufficiency reduces grid dependency, supporting carbon neutrality goals.
- Scene Engagement Activation: Attracts visitors through its social media appeal, driving social sharing and traffic growth for parks and districts.
- Emergency Support Capability: During extreme weather or emergencies, serves as a temporary charging and information dissemination node, improving urban resilience.
